Input voltage: AC 100-277V / 50-60Hz

Power: 15W/m / 20W/m / 30W/m / 10W/m

System efficiency: up to 102lm/W

Light colour: 2700K / 3000K / 4000K

Beam angle: 105°

Light distribution: Axially symmetrical

CRI: >80 / >90 / >95

UGR: 21

Lumen maintenance: L90B50 58000 Hrs at 55°C

Colour deviation: SDCM <2

Optic: Opal diffuser

Adjustability: Fixed

Trim: Black / White

Material: Powdercoated aluminium housing, cutting PC diffuser for a single linear lights or roll PC diffuser for the linkable straight linear lights

Mounting: Surface Mounted, Suspended

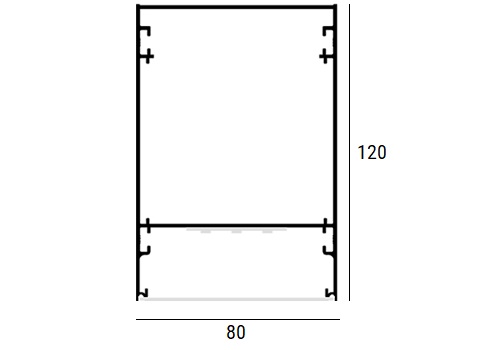

Size (mm): 80x120

Power supply: Built-in / Remote

Control: DALI dimmable / Non-dimmable

Emergency duration: 3hrs

Accessories: Mounting clips

Optional accessories: Suspension wire kit, canopy

Linkable: Yes

Connection type: 1m 3-core lead / 1m 5-core lead

Item Billing Unit (mm): 1000

Custom option: Wattage, finish, low glare diffuser UGR<19 (Max. 14W/m), high-efficiency of 120lm/W and other customisations are subject to additional charges or minimum quantity order

Order length: Supplied as per total quantity and detailed cut list

IP rating: 20

Operating temperature: -10~45°C

Warranty: 5 years

Compliance: CE, CB, SAA, RCM, RoHS

Installation method: Splicing required. Supplied instruction manual, custom labelling, production configuration reflective of shop drawings
